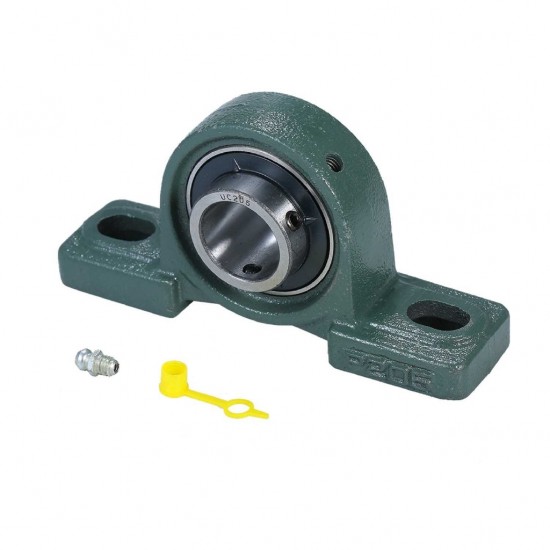

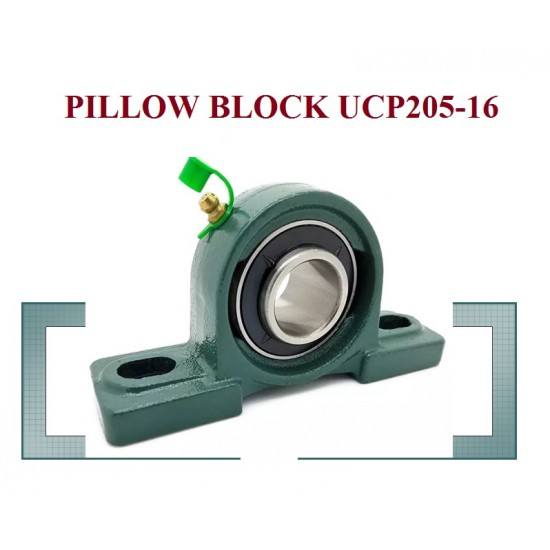

CAST IRON PILLOW BLOCK UCP205-16

** MODEL : UCP205-16

** MAIN MATERIAL : CHROME STEEL

** COLOR :  DARK GREEN

==> THE UCP205-16 PILLOW BLOCK MOUNTED BEARING WITH A 1 INCH INSIDE DIAMETER, TWO BOLT HOLES AND A SET SCREW LOCK IS DESIGNED FOR MOUNTING ONTO BEARING SURFACES PARALLEL TO THE SHAFT AXIS, SUZH AS CONVENYER BELTS.

==> THIS READY TO MOUNT UNTUL A CAST IRON HOUSING, CHROME STEEL BEARINGS AND IS DESIGNED FOR EFFICIENT OPERATION AT A WIDE RANGE OF SPEEDS. THIS ONE PIECE PILLOW BLOCK HOUSING ALLOWS FOR A STATIONARY OUTER RING AND ROTATING INNER RING.

==> THE BEARING IS SECURED TO THE SHAFT WITH SET SCREWS TO PREVENT SLIPPAGE AND THE HOUSING REQUIRES TWO 3/8 INCH BOLTS. THIS MOUNTED BEARING IS USED IN INDUSTRIAL MANUFACTURING, FOOD AND BEVERAGE MANUFACTURING AND IN THE TEXTILE INDUSTRY.

==> MOUNTED BEARINGS COMBINE A BEARING MOUNTED INSIDE A HOUSING UNIT. THE BEARING HOUSING REPLACES THE NEED A CASTING OR WELDMENT TO POSITION THE BEARING SECURELY FOR RELIABLE OPERATION AND ITS DESIGN DETERMINES THE TYPE OF INSERT BEARING. INSERT BEARING USE ROLLING ELEMENTS TO MAINTAIN THE SEPERATION BETWEEN MOVING PARTS TO REDUCE ROTATIONAL FRITION AND TO SUPPORT RADIAL AND AXIAL LOADS.
