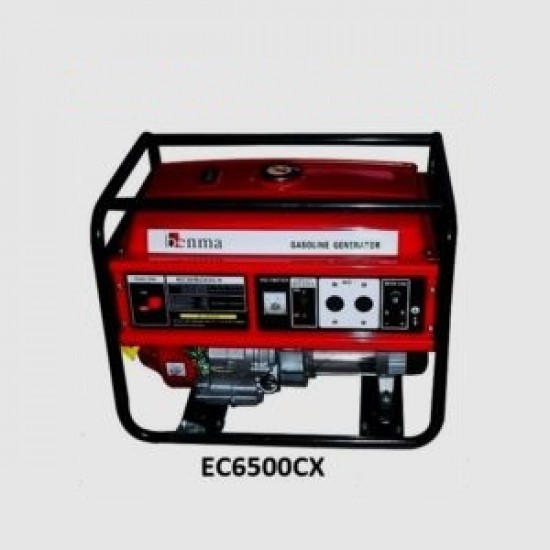

Gasoline Generator EC6500CXEB

Model : EC6500CXEB

~GENERATOR

Rated Voltage : 240v

Frequency : 50Hz

Rated Output : 5.0kw

Maximum Output : 5.5kw

~ENGINE

Model : 188F

Type : Air-cooled; 4-Stroke, OHV;25° inclined single cylinder

Bore X Stroke : 88x64mm

Displacement : 389cm(3)

Compression Ratio : 8.0:1

Max. Power Output : 13hp(9.6kw)

Rated Power Output : 11.7hp(8.6kw)

Max. Torque : 26.5N.m

Ignition System : Transistor Magneto

Starting System : Recoil start / Electric start

Engine oil capacity : 1.1 litres

Fuel capacity : 6.5 litres

Fuel Tank Capacity : 25L

Continuous operating time : 10 hour

Min. Fuel Consumption : 313g/Kw/h

Noise Level : 74dB

Rotate : Left

Air Cleaner : Semi-dry; oil bath;dual

-UNIT

Overall Dimension : 82.5 x 54 x 57cm

Dry Weight : 85kg
